tci iadc637 tricone rock drill bit

Payment Type:
L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm:
FOB,CFR,CIF,FCA,CPT
Min. Order:
1 Bag/Bags
Transportation:
Ocean,Land,Air
Port:
Tianjin,Beijing,Shanghai
Share:
  • Product Description
Overview
Product Attributes

Model No.IADC637

BrandDeris

AdvantageDurable And Cost-effective

Addition FeatureGauge And Shirttail Protection

Industrial StandardSY/T5164

FormationMedium To Hard Formation

Bearing TypeRoller/ Journal Bearing

Sealed TypeRubber / Metal Sealed

Connection2 3/8"-7 5/8" REG Pin

MaterialHigh Manganese Steel, 15MnNi4Mo

ColorBlue / Golden /Red

Supply Ability & Additional Information

Packagingwooden case or customer requirments

Productivity50pcs/month

TransportationOcean,Land,Air

Place of OriginChina

Supply Ability50pcs/month

CertificateISO & API

HS Code82071990

PortTianjin,Beijing,Shanghai

Payment TypeL/C,T/T,D/P,Paypal,Money Gram,Western Union

IncotermFOB,CFR,CIF,FCA,CPT

Packaging & Delivery
Selling Units:
Bag/Bags
Package Type:
wooden case or customer requirments


tci iadc637 tricone rock drill bit  are designed for very hard formations depending on the style and quantity of the carbides on the drill bit...because of its versatility and performance, it's still one of the main rock bits in use today. it is widely used for oil&gas, water well, geotechnical, environmental, geothermal, construction, exploration and mining drilling. drill effectively in formations such as hard limestone, dolomite, hard sands, and other formations with hard cherty.



Model

Milled tooth bits tricone for water well , TCI bits tricone for water well

IADC Code

116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347

417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535

Bearing Type

H---Friction bearing; G---Roller bearing; F--- Floating Bearing

Sealing Type

HJ(metal sealed journal bearing)
HA (rubber sealed journal bearing) air cooled bearing type

Size

From 2 7/8" to 26" larger sizes for Hole Opener bit ,reamer bit

Material

alloy steel, tungsten carbide insert

Extra Feature

1) Y-Conical teeth 2) X-chisel teeth 3) K- wide teeth 4) G- Gague protection

Applicable Formation

Very soft, soft , medium soft ,hard, medium hard, very hard formation

Application

Petroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work

Package

Seaworthy packing wooden case or as your requirement

Payment Term

T/T, L/C at sight

Lead Time

3-7 work days

Delivery Way

By sea or by air

2.Product photos:

Tci Tricone Drill Bit

When you driling well Please select the applicable formation and parameters according to the instructions.Carefully check the Roller Cone Bit appearance and to check the roller-cone drill bits threaded end face,whether the serial number on the box and certificate.Selection of WOB and RPM should be within the limits of the recommended parameters, higher WOB and RPM cannot be used simultaneously. Bottom hole must be clean and roller cone rock bits must not be used for long section reaming.
Drilling process must operate smoothly, find that there is Bie jump on abnormal phenomenon, should be timely analysis and take effective measures

The well drilling bit should be kept indoor with dry and well ventilated conditions at 10-33℃ and kept from sunshine and rain. Stored under such conditions, quality of bit is guaranteed for 3 years.

tci iadc637 tricone rock drill bit

The advantage of Tricone Rock Bit

Hard Alloy Welding Pervent bit wear and tear work and protect the bearing

Hard alloy drill palm surface neck protection prevent bit wear in abrasive formation

High stength tunsten carbide teeth ,high temperature hear treatment forged alloy steel

Lubricating system protection of the bearing and seal system of the bit

Sealed Journal bearing

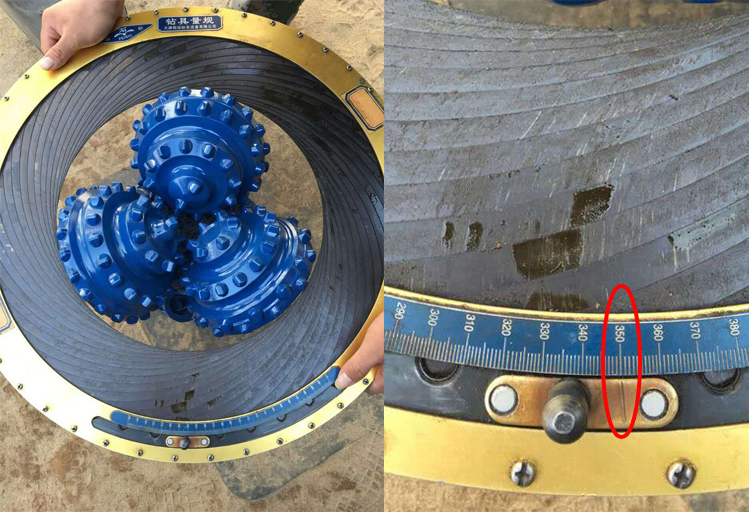

You can find the bit Diameter,thread Pin IADC code Serial number on the bottom

Tricone-bits

Produce

oil well tricone drilling bit parameters

IADC

WOB(KN/mm Bit Dia.)

RPM(r/min)

Applicable Formations

435

515

0.20~0.70

200~80

 Soft with very low compressive strength such as shale ,clay, sandstone ,soft  limestone ,etc

535

0.35~0.80

200~80

Medium soft with low compressive strength and harder abrasive stringers ,such as hard shale ,hared gypsolyte, soft limestone, sandstone and dolomite with stringer ,etc

417

437

0.35~0.90

140~70

Very soft with low compressive strength and high drillability, such as shale, clay, sandstone and conglomerate ,etc.

517

527

 0.35~1.05

120~50

Soft with low compressive strength, such as shale, clay, sandstone, soft limestone, salt bed and hard gypsolyte, etc

537

547

0.35~1.05

110~40

Medium soft with low compressive strength and harder abrasive stringers, such as hard shale, hard gypsolyte, soft limestone, sandstone and dolomite with stringers ,etc

617

627

0.35~1.05

80~40

Medium hard with high compressive strength and thick &hard stringers, such as hard shale, limestone, sandstone and dolomite, etc

637

737

0.70~1.20

70~40

Medium hard with high compressive strength and high abrasiveness ,such as limestone ,dolomite, sandstone and chert ,etc

Note: The upper limits of WOB and RPM in above table should not be used simultaneously


Size of tricone drilling bit

NO.

Tricone Bit size

Thread



NO.

Tricone bit size

Thread

Inch

mm

inch

mm

1

3-3/4

95.3

2-3/8 " REG Pin

28

9-5/8

244.5

6-5/8

2

3-7/8

98.4

29

9-7/8

250.8

6-5/8" REG Pin

3

4-1/8

104.8

30

10-1/2

266.7

4

4-1/4

108.0

31

10-5/8

269.9

5

4-1/2

114.3

32

11

279.4

6

4-5/8

117.5

2-7/8" REG Pin

33

11-5/8

6-5/8

7

4-3/4

120.7

34

12

304.8

8

4-7/8

123.8

35

12-1/4

311.2

9

5-1/2

139.7

3-1/2" REG Pin

36

12-5/16

6-5/8

10

5-5/8

142.9

37

12-3/8

314.3

11

5-2/3

143.9

38

12-7/16

315.9

12

5-3/4

146.1

39

12-5/8

320.7

13

5-7/8

149.2

40

13-1/8

333.4

14

6

152.4

41

13-1/2

342.9

15

6-1/8

155.6

42

13-5/8

346.1

16

6-1/4

158.8

43

13-3/4

349.3

17

6-1/2

165.1

44

14-1/2

374.7

7-5/8" REG Pin

18

6-5/8

168.3

45

14-3/4

374.7

19

6-3/4

171.5

46

15-1/2

393.7

20

7-1/2

190.5

4-1/2" REG Pin

47

16

7-5/8

21

7-5/8

193.7

48

17-1/2

444.5

22

7-7/8

200.0

49

18-7/8

479.4

23

8-3/8

212.7

50

20

508.0

24

8-1/2

215.9

51

22

558.8

25

8-5/8

219.1

52

24

609.6

26

8-3/4

222.3

53

26

660.4

27

9-1/2

241.3

6 5/8 " REG Pin


tricone bit

Application of stone drilling bits

well drilling bit

Our Company

Hejian Deris Petroleum drilling equipment Co., Ltd was established in 2000, located in Hejian City Junziguan Industrial Park, next to National Highway 106,close to Tianjin Port, Beijing Airport, convenient transportation and superior location. The company covers an area of 30 acres and a factory building of 15,000 square meters.

Specializing in the production and sales of Drilling Tools such as Tricone bit, PDC drill bits, Hole opener, roller cone drills, hammer and hammer bit, drill pipes, drill collars, etc. A professional design, production, inspection and foreign trade sales team has been established. .
Products are export to the United States, Canada, Russia, Kazakhstan, Iran, Qatar, Sweden, Germany, Australia, Singapore, Mexico, Colombia and other more than 30 countries. The sales volume reached 15,000 pieces of the roller cone, and the three-cone drill bit 5000 achieved first-class design, first-class manufacturing, first-class product cost performance, and first-class after-sales to achieve win-win for the industry, customers and the company.
Our company is planning to build a new factory, adding 3 production lines, CNC machine tools, drilling machines, milling machines, quality testing equipment, etc. to ensure quality and timely delivery. Make sure that every quality product meets customer needs. Looking forward to working with you.

TCI TRICONE BIT

Our certificate

Each product is manufactured and inspected in strict accordance with the industry's highest technical quality standards and API specifications. The quality assurance system established in accordance with the requirements of ISO 9001 ensures the best quality of the products and the effective operation of the company.

well drilling bits

Oil well tricone bits Package and shipping

Package Type : wooden case ,also be packaged according to customers requirement

Transportation : by sea , by air or land transportation . Less than 50kg shipping by courier better
Delivery : If we have stock, the delivery time will need about 2~3 working days. In general, common size tricone bits and PDC Bit, we have stock.
If we have no stock, such as the tci reamer and PDC Hole Opener, it will be 7-10 working days in total.
